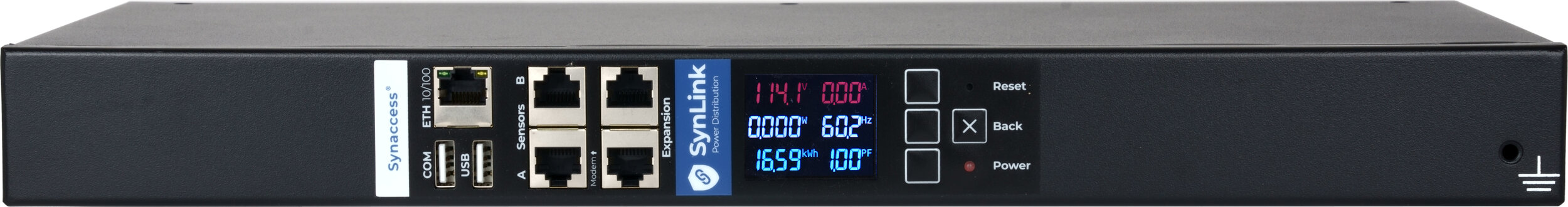

SP-1001B SynLink 1U Switched






Higher Power Capacity with Enterprise Networking Stack

Real-time inlet-level current RMS monitoring with 1% accuracy. Remotely switch 8x individual outlets for complete control of your equipment. Each unit comes with a SynLink Smart Control Module that allows you to remotely manage your Power Distribution using industry-standard Network Protocols such as SNMP, Web, HTTP(s), SSH, Telnet, Serial, and more.

Key Upgrades

  • High level of automation (Dozens of triggers with customizable actions)

  • Inlet Current RMS Measurements (Amps)

  • Higher Power Capacity (20 amp inlet capacity)

  • Color LCD Display (Access to more power information + faster deployments)

  • Enterprise Networking Stack (Integrate into any management software with ease + SSH/LDAP/RADIUS/SYSLOG)

  • Multiple Serial Ports (RJ45 RS232 Serial + USB-Serial)

  • Relay Health Monitoring + Lifetime Diagnostics (Have visibility on PDU health, and relay status)


Input
Plug Types
IEC-320 C20, NEMA L5-20P, NEMA L6-20P
Input Voltage(s)
120V,208V,240V
Max Input Current
20A
Power Capacity
1.9kVA - 3.8kVA
Phase
1
Input Measurements
Current RMS (A)
Smart PDU Access & Communications
Networking Protocols
SNMP V1,2,3, HTTP(S) API, Web Interface, SMTP, Syslog, Telnet, SSH, Ping, DHCP, NTP
Serial Communication (Out-of-Band)
RJ45 RS232 Serial and USB-Serial (FTDI)
Ports
2 x Expansion Ports for daisy chaining, 1 x USB 2.0 1 x USB-Serial (FTDI) 2 x Sensor Ports 1 x 10/100 BaseT Ethernet 1 x RJ45 RS232 Serial
Front Panel LCD
Allow/Restrict users to manage networking & outlet configuration.
Firmware Upgrade
Updates with an active internet connection, remotely with web GUI, locally with USB Flash Drive
Output
Outlet Voltages
120V,208V,240V
Outlet Receptacles
NEMA 5-20R(8), C13(8), C13(6) + C19(2)
Total Number of Outlets
8
Overload Protection
None
Outlet Switching
Included
Outlet Current Measurement
None
Physical
Form Factor
1U
Dimensions (hwd)
17.00" x 1.75" x 7.88"
Storage Temperature Range
-25C to +65C
Relative Humidity
5-95% (non-condensing)
Maximum Operating Elevation
0-10,000 ft / 0 - 3,000 m

netbooter comparison netbooter comparison netbooter comparison netbooter comparison
netBooter Switched SynLink Switched Pro+ SynLink Switched SynLink Monitored
Network Protocols Telnet/HTTPS/SNMP/SMTP SSH/HTTPS/SNMP/SMTP Syslog/LDAP/Radius SSH/HTTPS/SNMP/SMTP Syslog/LDAP/Radius SSH/HTTPS/SNMP/SMTP Syslog/LDAP/Radius
Inlet Measurements Current RMS (A) Kilowatt hours (kWh), Current RMS (A), Line Frequency (Hz), Voltage RMS (V), Active Power (W), Apparent Power (VA), Power Factor Current RMS (A) Kilowatt hours (kWh), Current RMS (A), Line Frequency (Hz), Voltage RMS (V), Active Power (W), Apparent Power (VA), Power Factor
Outlet Switched Included Included with Relay Health Monitoring Included with Relay Health Monitoring -
Outlet Measurements - Current RMS (A) - -
Max Inlet Current 15 amps 20 amps 20 amps 20 amps
Front Display Digital Current Meter Color LCD Display Color LCD Display Color LCD Display
Serial Communication USB Serial Port RJ45 RS232 Serial and USB-Serial (FTDI) RJ45 RS232 Serial and USB-Serial (FTDI) RJ45 RS232 Serial and USB-Serial (FTDI)
Hot Swappable Controle Module - ✓ ✓ ✓
Historical Power Graphs - ✓ ✓ ✓
Onboard Diagnostics - Lifetime Energy accumulation, switch count, and max current/voltages Lifetime switch count, and max current log Lifetime Energy accumulation and max current/voltages
