netCommander PDU
Provides remote access to RS232 ports as well as independent control of outlets via TCP/IP networks.
netCommander PDU products offer full control of a remote system, with remote serial port access and the ability to control power states. Useful for remote access to multiple devices through only one unit or providing access to systems which are not connected to networks.
Remote RS232 Access - in-band and/or out-of-band access to RS232 console ports via TCP/IP networks or local direct connection.
AC Power Controls - Outlets are independently controlled via Telnet, Web, or external modem w/ DB-9 RS232 port.
Autoping and Reboot – Keep downtime to a minimum, monitor your network connectivity and reboot devices automatically.
Programable Interfacing - Easy to implement into your systems with control via master serial port, TCP/IP scripting and our programming interface commands.
Specifications
| Item | NPC-22T | NPC-88U |
|---|---|---|
| Physical Dimensions | 6.15” x 5.40” x 1.75” Compact | 19” X 6.25” X 1.75” 1U |
| Input Power Voltage | 110VAC, 60Hz (Also support 220VAC, 50 Hz) | |
| Total Load (Combine all AC outlets) |
13 Amps | 15 Amps |
| Power Input | 1 - IEC 320 C14 | |
| AC Outlet Type | 2 - NEMA 5-15R | 8 - NEMA 5-15R |
| AC Current Draw Monitoring | 2 - Oulet current sensors | 8 - Oulet current sensors |
| Local Console Interface | 1 - RS232 Port. DB9 Connector. Data: 7 or 8 bits. Stop Bits: 1 or 2. Parity: None Flow Control: None. Baud Rate: 2400 to 115200 |
|
| User Console Interface | 2 - RS232 Ports. DB9 Connector. | 8 - RS232 Ports. RJ-45 Connector. |
| Network Interface | 10/100-Base T. RJ-45 | |
| Network Protocals | ICMP, IP/TCP, NTP, SMTP, SNMP, DHCP, Telnet, HTTPS/HTTP and BootP | |
| LED Indicators | 2 - Outlet On/Off status LEDs 1 - Device Power LED 1 - Network LED |
8 - Outlet On/Off status LEDs 8 - Active Serial Port LEDs 1 - Device Power LED 1 - Network LED |
| Weight | 2 lbs | 8 lbs |
| Operational Temperature | -25C° – 50C° | |
| Humidity | 5-95%, non-condensing | |
| UL/FCC Compliance | TUV(US), UL-60950, FCC Class B | |

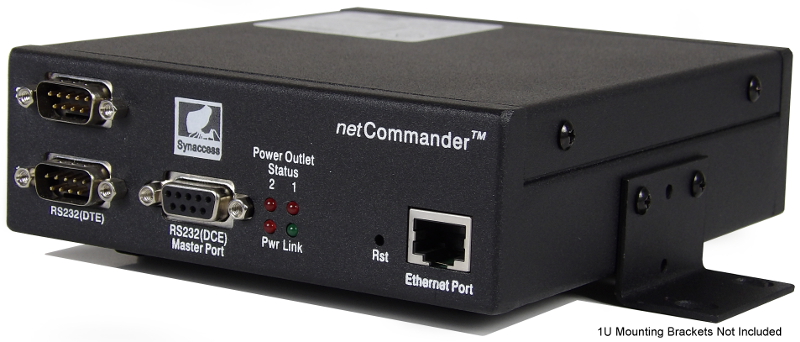

netCommander™ NPC-22T PDU provides secured remote power source management of 2 independent outlets with 2 serial console ports. Individual serial ports can be accessed concurrently.
